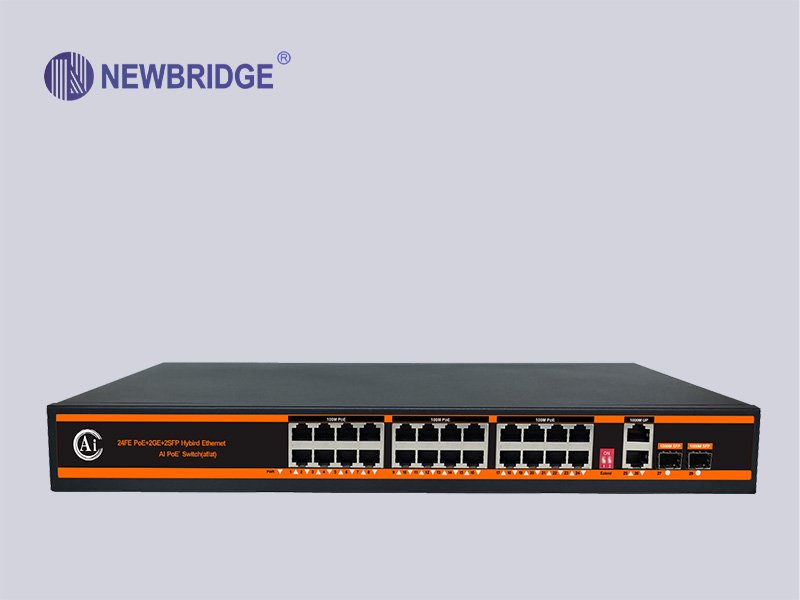

Newbridge®The 24-port 10/100Mbps AI PoE switch provides seamless data connectivity for 10/100Mbps Ethernet and PoE power for powered devices such as network surveillance cameras and wireless (AP).
The switch has 24* 10/100Mbps PoE+ ports + 2* 100/1000Mbps uplink ports+ 2 Gigabit SFP ports, where 1-24 100 Mbps downlink power ports all support powering PoE network cameras via UTP Category 5 and above unshielded twisted pair cables. 24 10/100 Mbps adaptive RJ45 downlink ports all support 802.3af/at standard PoE power supply.  Support priority mechanism, when the remaining power is insufficient, the power supply of the high priority port is guaranteed first to avoid overloading the equipment. The maximum PoE output power of the whole machine is 300W, and the maximum power supply power of individual ports is 30W.
The 24 ports of Power over Ethernet can achieve AI self-healing function (watchdog function) by toggling any dial horse switch in the case of non-stop power, 250m long distance + VLAN isolation mode,which automatically detects the data communication status in real time. When a port communication fault occurs, the corresponding port  restarts automatically to recover the network communication and avoid manual maintenance.The Value lies in help to build the AI intelligent security transmission ecosystem.
Users can easily understand the working status of the device through the power indicator and status indicator of each port, plug-and-play, no configuration required, simple and convenient.

l 24*10/100Mbps PoE ports, 2*10/100/1000Mbps uplink port,2*1000Mbps SFP Slot
l Support IEEE802.3af/at
l Support restrain network storm, VLAN function
l Support Max Transmission distance up to 250m with PoE Power
l Support AI self-healing mode(Watchdog function)
l The toggle horse can be switched at will without power
l All port supported by MDI/MDIX auto flip and self-negotiation
l Built-in power supply;
l Maximum power of single PoE port: 30 W
l Maximum PoE power: 300W
l Adopts store-and-forward architecture
l Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
l Support lightning protection 4kV
