ND1PHG802FX

 Click on the picture to enter the Gallery

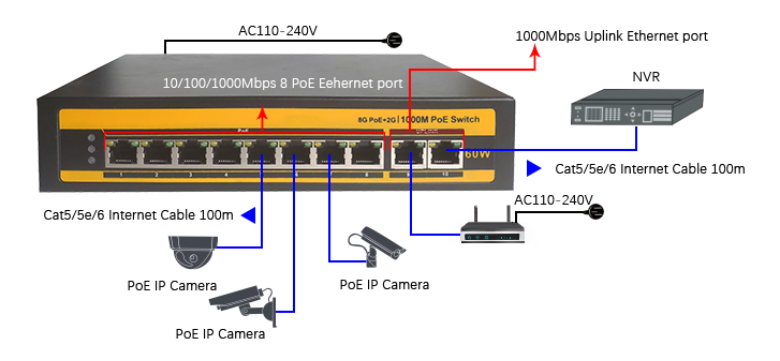

1、8*10/100/1000Mbps PoE ports, 2*10/100/1000Mbps uplink port
2、 Support IEEE802.3af/at
3、 Support restrain  network  storm, VLAN function
4、 All port supported by MDI/MDIX auto flip and self-negotiation
5、 Built-in power supply;
6、 The first port can supply power up to 60W.the other port of Maximum power can be up to 30W
7、Maximum PoE power: 120W;
8、 Adopts store-and-forward architecture;
9、 Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
10、 Support lightning protection 6000V


Power Power Adapter Voltage AC 110V-240V
Consumption 120W(52V2.3A)

Network Connector		 Network Port PoE Ethernet Port 1～8 Port : 10/100/1000Mbps
Ethernet port Uplink Port : 10/100/1000Mbps

Transmission Distance		 1～8 Port : 10/100/1000M: 0~ 100m
Uplink Port : 0 ~ 100m
Transmission Medium Cat5/5e/6 standard network cable




Network Switch		 Network Standard IEEE802.3/802.3u IEEE802.3xIEEE802.ab
Switching Capacity 20Gbps
Packet Buffer Memory 1Mbits
Throughput 14.88Mbit
MAC Table 4K
Fording Model Store -and -forward
Data Package length 1518byte
Full Wire Speed Full wire speed transmission under full duplex mode
Packet Forwarding Rate 10Mbps:14880pps/port
100Mbps:148800pps/port
1000Mbps:1488000pps/port

Power Over Ethernet		 PoE Standard IEEE 802.3af/at
PoE Power Supply End-Span(1/2+;3/6-)
PoE Power af=15.4W at=30W
The first PoE Port Support 60W power supply

LED Indicator

LED Indicator		 PWR:keep bright
Port power indicator:keep bright
Port Network indicator:Flicker when there is data transmission

Environmental		 Working temperature 0℃~55℃
Relative Humidity 20~95%
Storage temperature -20℃~70℃

Mechanical		 Dimension (L×W×H) 230mm*151mm*45mm
Color Black
Weight 1kg
Stability MTBF >30000h
